DONJOY® ICEMAN® CLEAR3

Transparent clip-on MP3 player with black headphones on a white background

DonJoy

DONJOY® ICEMAN® CLEAR3

The IceMan CLEAR3 cold therapy unit helps reduce pain and swelling, speeding up rehabilitation and recovery. The IceMan helps provide extended cold therapy to aid in a variety of indications and protocols as directed by a medical professional. It utilizes DonJoy’s recirculation system, which helps maintain more consistent and accurate temperatures than other competitive cold therapy units, in a pre-set configuration.


Proven Performance


  • Time tested with over 20-years of experience delivering industry leading cold therapy solutions
  • Developed through direct customer interaction and feedback


Technology Advantage


  • Our recirculation system helps deliver consistent cold therapy throughout the cold pad, eliminating freezing inlet temperatures


Patient Convenience and Ease-of-use


  • Clear cooler design for easy refill indication
  • Self-priming, plug-n-play operation
  • Designed for easy portability and storage
  • A complete line of cold pads to help deliver cold therapy tto where it is needed the most

Overview

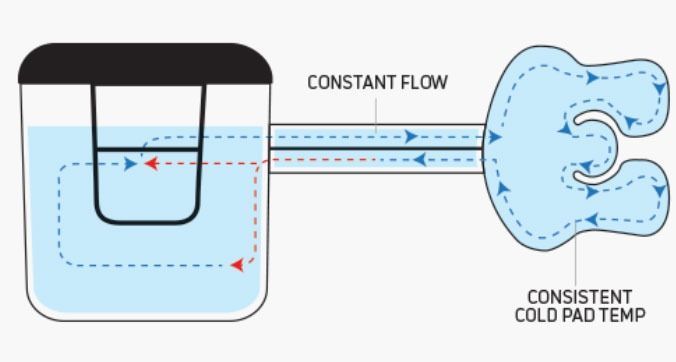

Diagram of a water bath controlling a paddle with constant flow and a consistent cold pad temperature

ICEMAN with dual pump recirculation technology. The DonJoy® IceMan® features a recirculation system that allows water warmed after flowing through the cold pad to be preserved and remixed with cooler ice water at a constant flow rate, providing consistent cool water distribution throughout the cold pad.

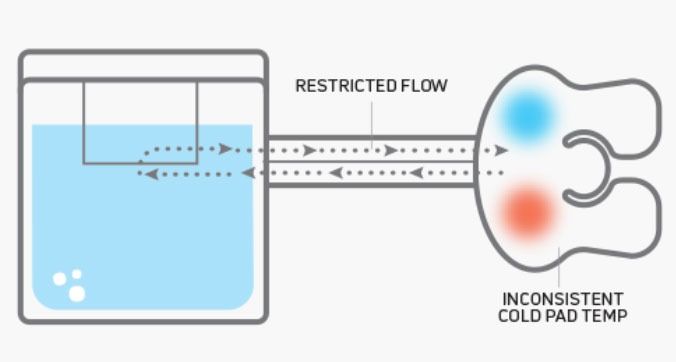

Diagram of restricted fluid flow causing inconsistent cold and hot water at a faucet

COMPETITORS Other versions restrict or pinch water flow to the cold pad, causing variable flow rates and inconsistent cold pad temperatures.

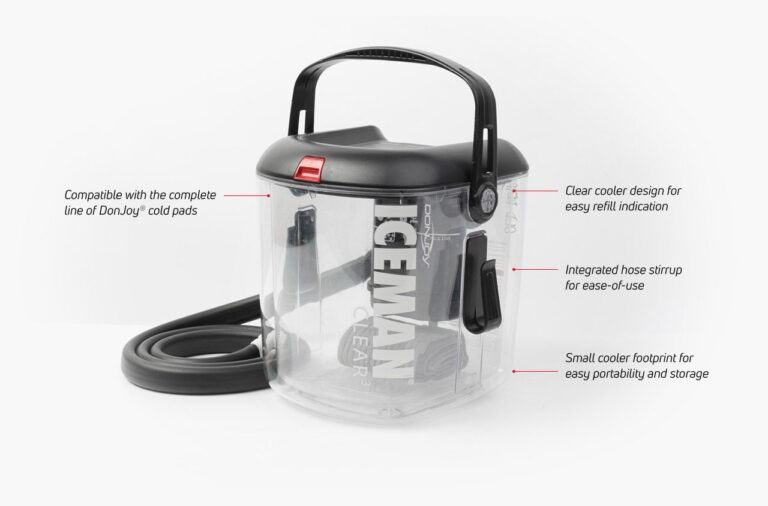

Clear portable vacuum canister with black lid and hose, labeled with product feature callouts.

WARNING!

THIS DEVICE CAN BE COLD ENOUGH TO CAUSE SERIOUS INJURY.

Please read and understand all warnings and instructions for use before using the device. DO NOT use this device without a prescription and direction from a physician.

STEPS:

  1. Add ice to fill line inside the device.
  2. Add cold water to fill line.
  3. Place lid on the device making sure the lip inserts in groove. Then press front of the lid down to close and secure.
  4. Connect the IceMan® CLEAR3 hose to the cold pad hose. To ensure a reliable connection, “snap” or “click” hoses together into place so that the fit is tight and snug.
  5. To turn device on, insert cord into the connection port on the back of the device and plug the power supply into the wall outlet.

Video

Features & Benefits

  • Backed by DonJoy’s Knee Guarantee Program™, an industry first for prefabricated bracing
  • 1-year warranty on frame and hinges
  • Clinically-proven 4-Points-of-Leverage System
  • Patented clinically-proven FourcePoint hinge technology
  • Internally mounted swiveling strap tabs help accommodate leg movement
  • Swooping thigh cuff for inner thigh clearance and bilateral brace use
  • Strong, lightweight aircraft grade aluminum frame

Part Numbers

Ordering Information

DonJoy® IceMan® CLEAR3

Description

Part Number

IceMan® CLEAR3 Cold Therapy Unit

ACL

IceMan® CLEAR3 w/ Universal Cold Pad, S, RH

11-1629

IceMan® CLEAR3 w/ Universal Cold Pad, NS, RH

11-1630

IceMan® CLEAR3 w/ Universal Wrap-On Pad, NS, RH

11-1631

IceMan® CLEAR3 w/ Universal Wrap-On Pad, NS, EH

11-1633

IceMan® CLEAR3 w/ Shoulder Wrap-On Pad, NS, EH

11-1635

IceMan® CLEAR3 w/ McGuire Knee Wrap-On Pad, NS, RH

11-1636

IceMan® CLEAR3 w/ Ankle Wrap-On Pad, NS, RH

11-1638

IceMan® CLEAR3 Power Supply Cord

25-4882

Cold Pads

Description (Sterile)

Part Number

Universal Cold Pad, S, RH (10.85”x11.34”)

11-0801-9-00000

Universal Cold Pad, S, EH (10.85”x11.34”)

11-0802-9-00000

Universal Cold Pad XL, S, EH (12”x11.34”)

11-0804-9-00000

Rectangle Cold Pad S, S, RH (4.81”x10.75”)

11-0817-9-00000

Rectangle Cold Pad XL, L, S, EH (9.76”x13.75”)

11-0813-9-00000

Wrist/Hand Cold Pad, S, RH (2.9”x4.2”)

11-1269-9-00000

Ankle Cold Pad, S, RH (12.26”x8.28”)

11-0815-9-00000

Description (Non-Sterile)

Part Number

Universal Cold Pad, NS, RH (10.85”x11.34”)

11-0675-9-00000

Universal Cold Pad, NS, EH (10.85”x11.34”)

11-0676-9-00000

Universal Cold Pad XL, NS, EH (12”x11.34”)

11-0678-9-00000

Wrap-On Pads

Description (Non-Sterile)

Part Number

Universal Wrap-On Pad, NS, RH (10.85” x 11.34”)

11-0679-9-00000

Universal Wrap-On Pad, NS, EH (10.85” x 11.34”)

11-0680-9-00000

Universal Wrap-On XL, NS, RH (12”x11.34”)

11-0681-9-00000

Universal Wrap-On Pad XL, NS, EH (12”x11.34”)

11-0682-9-00000

McGuire Knee Wrap-On Pad, NS, RH (10.85”x11.34”)

11-1268-9-00000

Shoulder Wrap-On Pad, Small, NS, EH (12.75”x19”x12.25”)

11-1397-9-00000

Shoulder Wrap-On Pad, NS, EH (14”x23”x12.5”)

11-1334-9-00000

Ankle Wrap-On Pad, NS, RH

11-1522

Fore-Foot Wrap-On Pad, NS, RH

11-1521

Hip-Left Wrap-On Pad, NS, RH

11-9112

Hip-Right Wrap-On Pad, NS, RH

11-9111

Sterile Dressings

Description

Part Number

Universal Sterile Dressing

11-0822-9-00000

Universal XL Sterile Dressing

11-0823-9-00000

Rectangle XL Sterile Dressing

11-0820-9-00000

Shoulder XL Sterile Dressing

11-1360-9-00000

S = Sterile

NS = Non-Sterile

RH = Regular Hose (6.5”)

EH = Extended Hose (15”)
